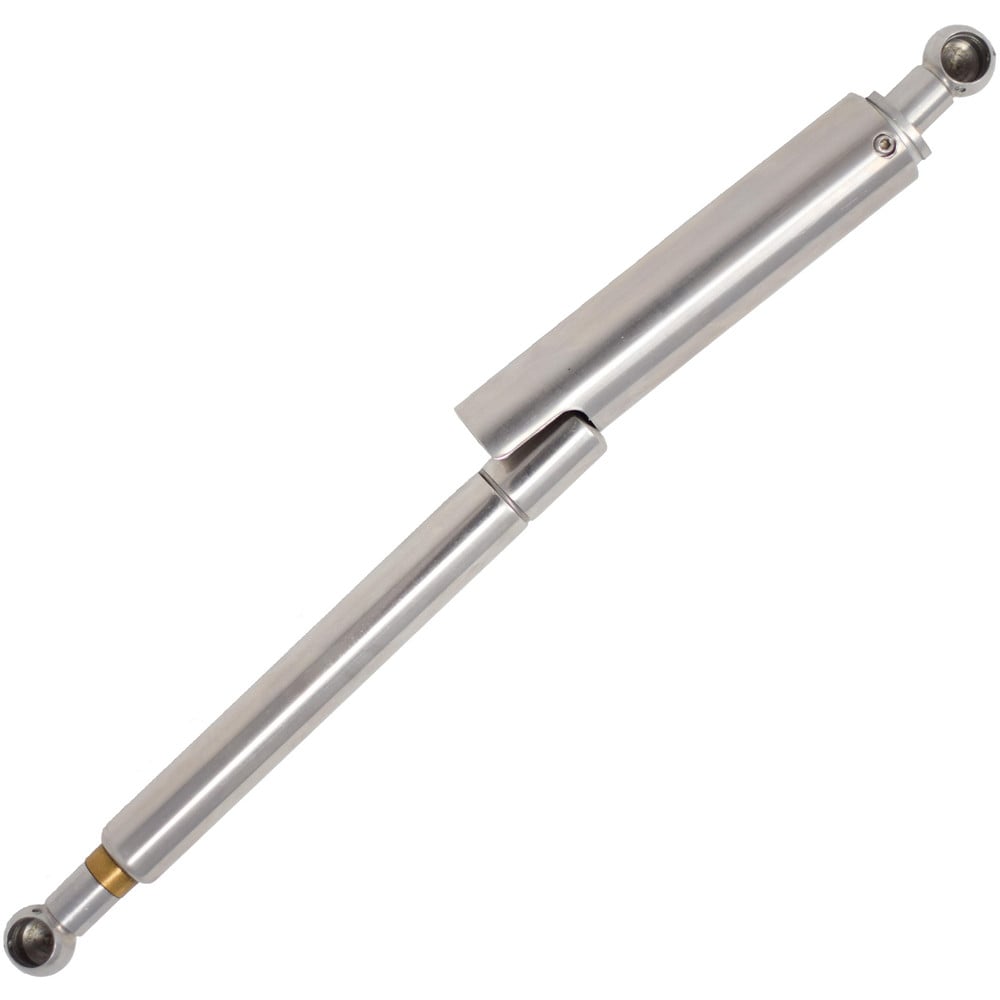

Locking Gas Spring: 30.00 lb Capacity
Item #: 02435824
Brand: Associated Spring Raymond
Model #: MCGSSL520030
Product Specifications
| Fitting Type | Socket End |
| Type | Locking Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (mm) | 6.00 |
| Tube Diameter (mm) | 15.00 |
| End Fitting Connection | Socket End |
| Extended Length (Decimal Inch) | 17.0100 |
| Compressed Length (Decimal Inch) | 10.28 |
| Extension Force | 30 |
| Stroke Length (mm) | 171.00 |
| Force Mechanism | Gas |
| Locking | Yes |
| Working Direction | Extension |
| Capacity (Lb.) | 30.00 |
| Finish Coating | Uncoated |
| UNSPSC Code | 31162800 |
