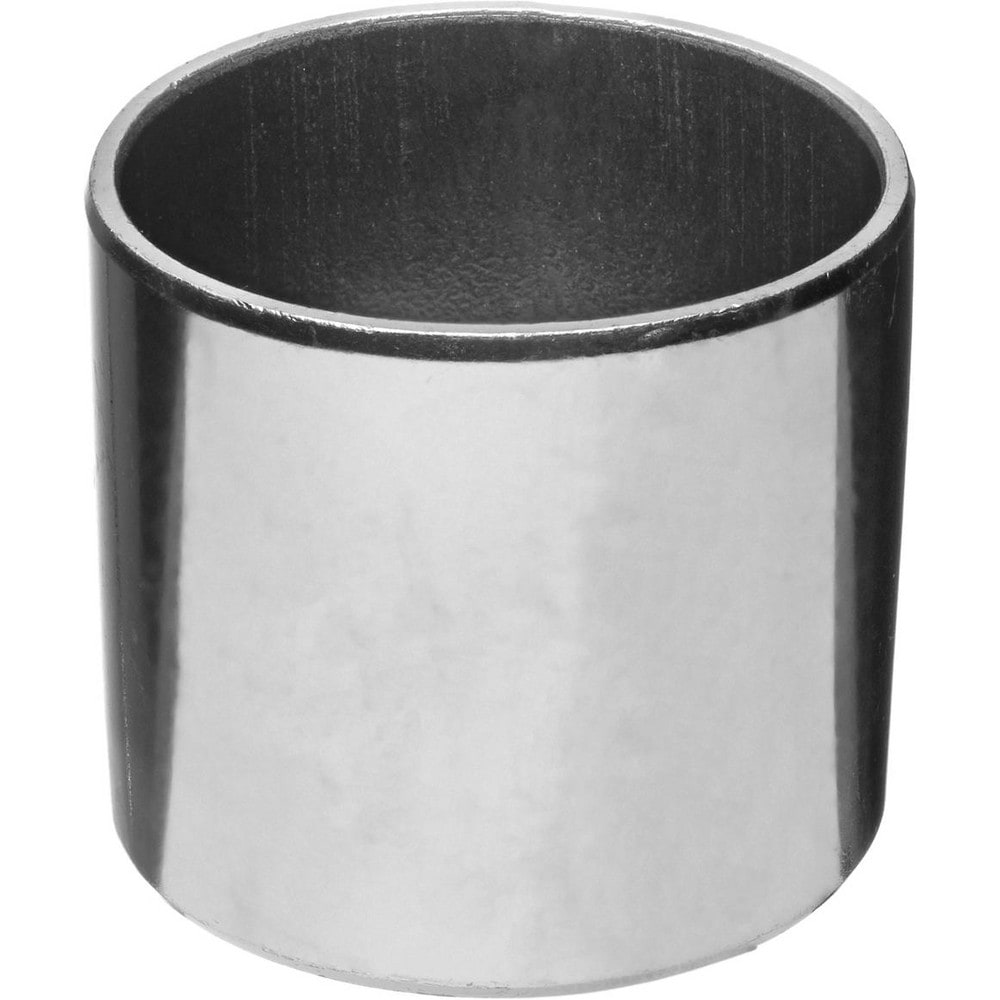

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 3-11/32; Outside Diameter (Decimal Inch - 4 Decimals): 3.3438; Inside Diameter (Inch): 3-5/32; Inside Diameter (Decimal Inch): 3.1563
Item #: 76825363
Brand: USA Industrials
Model #: ZUSAB-PB-254
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 3-11/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 3.3438 |
| Inside Diameter (Inch) | 3-5/32 |
| Inside Diameter (Decimal Inch) | 3.1563 |
| Material | Steel |
| Overall Length (Inch) | 1-9/16 |
| Overall Length (Decimal Inch) | 1.5625 |
| Static Load Capacity | 1231973.73 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 85.0350 |
| Housing Bore Limits Mininum | 85.0000 |
| Inside Diameter (mm) | 80.0000 |
| Overall Length (mm) | 40 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
