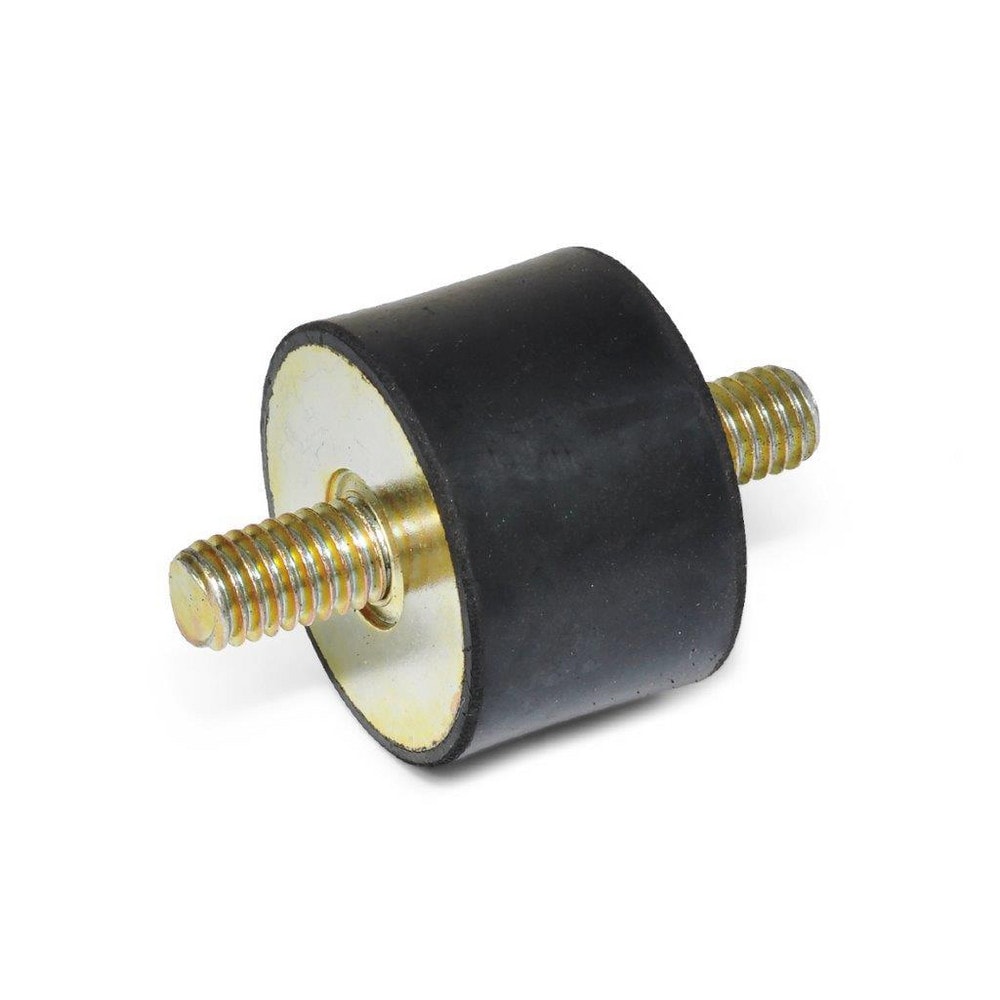

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 195.70 N; Top Diameter: 16.00; Bottom Diameter: 16; Thread Size: #8-32; Overall Width: 16 mm
Item #: 67907550
Brand: J.W. Winco
Model #: 351.1-16-13-8-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 195.70 N |
| Top Diameter | 16.00 |
| Bottom Diameter | 16 |
| Thread Size | #8-32 |
| Overall Width | 16 mm |
| Overall Diameter | 16 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.1000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 39 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 195.70 N |
| Top Diameter | 16.00 |
| Bottom Diameter | 16 |
| Thread Size | #8-32 |
| Overall Width | 16 mm |
| Overall Diameter | 16 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.1000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 0.794 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 39 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67907550 |
| Mfr Part # | 351.1-16-13-8-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
