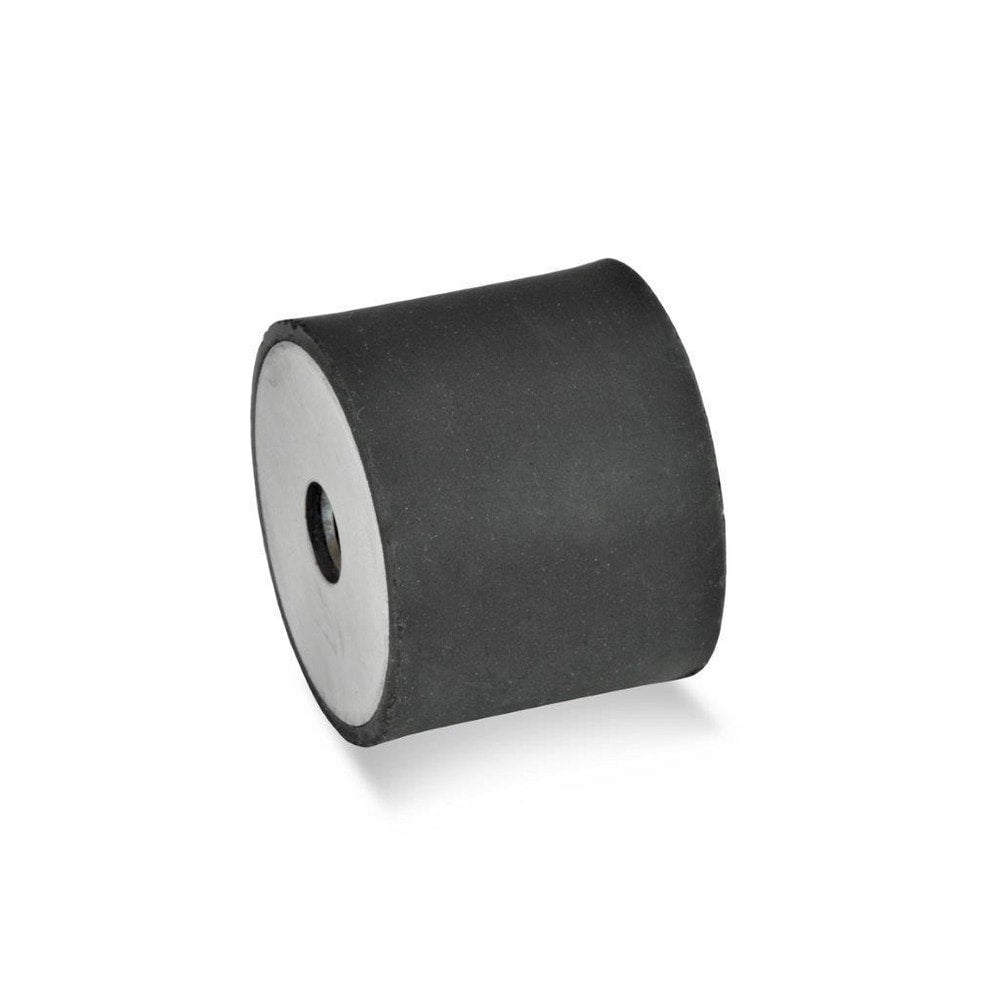

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 620.00 N; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: M6x1; Overall Width: 25 mm
Item #: 71815831
Brand: J.W. Winco
Model #: 451-25-20-M6-EE-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 620.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6x1 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 20 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 620.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6x1 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 20 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71815831 |
| Mfr Part # | 451-25-20-M6-EE-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
