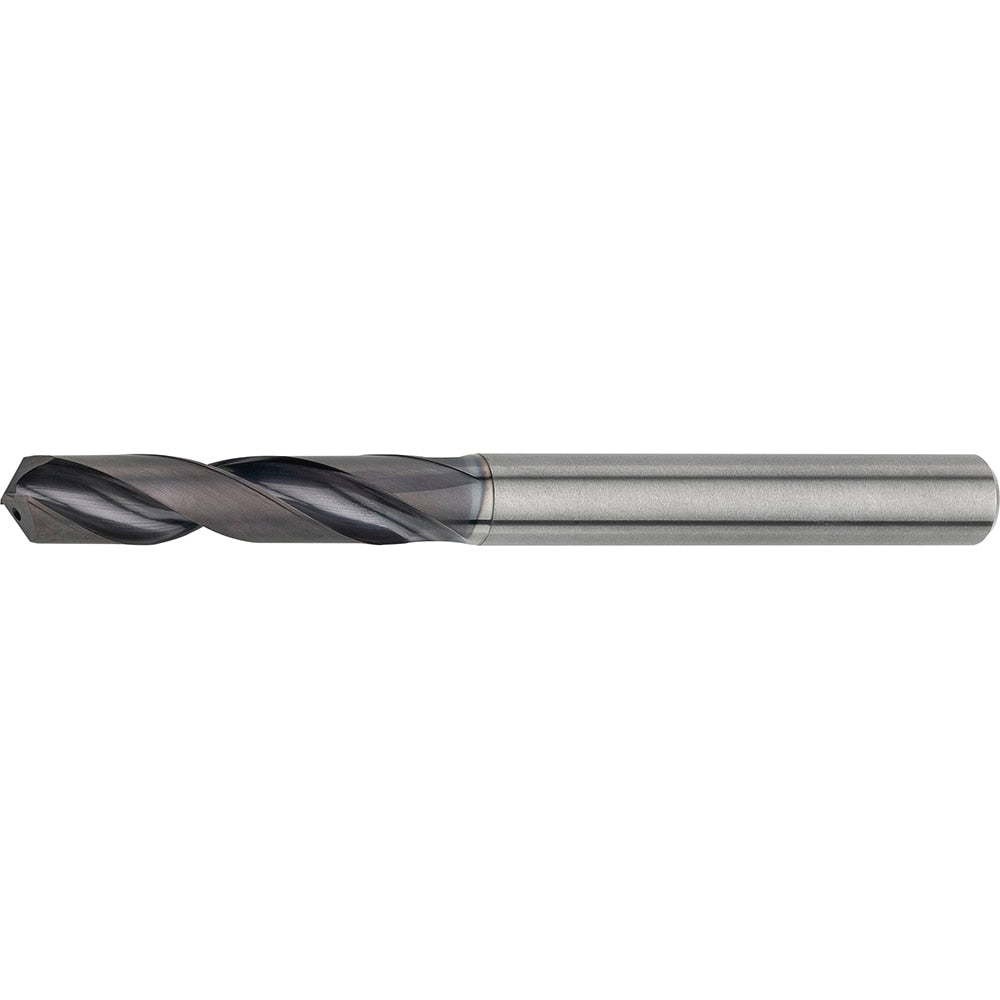

Micro Drill Bit: 2.06 mm Dia, (0.0810"), 145 deg, Solid Carbide
Item #: 67839217
Brand: Mitsubishi
Model #: 459727
Product Specifications
| Drill Bit Size (mm) | 2.06 |
| Drill Bit Size (Decimal Inch) | 0.0810 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.4140 |
| Flute Length (mm) | 10.52 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 145 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 2.39 |
| Maximum Drilling Depth (Decimal Inch) | 0.0940 |
| Number Of Flutes | 2 |
| Series | MWS |
| Overall Length (Decimal Inch) | 2.9260 |
| Overall Length (mm) | 74.32 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (Decimal Inch) | 2.4290 |
| Shank Length (mm) | 61.70 |
| Flute By Diameter Ratio | 1xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 2.06 |
| Drill Bit Size (Decimal Inch) | 0.0810 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.4140 |
| Flute Length (mm) | 10.52 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 145 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 2.39 |
| Maximum Drilling Depth (Decimal Inch) | 0.0940 |
| Number Of Flutes | 2 |
| Series | MWS |
| Overall Length (Decimal Inch) | 2.9260 |
| Overall Length (mm) | 74.32 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Brass; Hard Material; Austenitic Stainless Steel; Titanium; Superalloys & Titanium; Magnesium; Copper; Steels; Hardened Steel; Soft Metal; Special Alloy; Stainless Steels; Carbon Steel; Tool Steel; Special Alloys; Steel; Bronze Alloy; Iron Alloy; High Temperature Alloys; Alloy Steel; Cast Iron; Nickel; Copper Alloy; Nickel Alloy; Titanium Alloy; Hardened Materials |
| Secondary Workpiece Material Code | S; M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Shank Length (Decimal Inch) | 2.4290 |
| Shank Length (mm) | 61.70 |
| Flute By Diameter Ratio | 1xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67839217 |
| Mfr Part # | 459727 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
