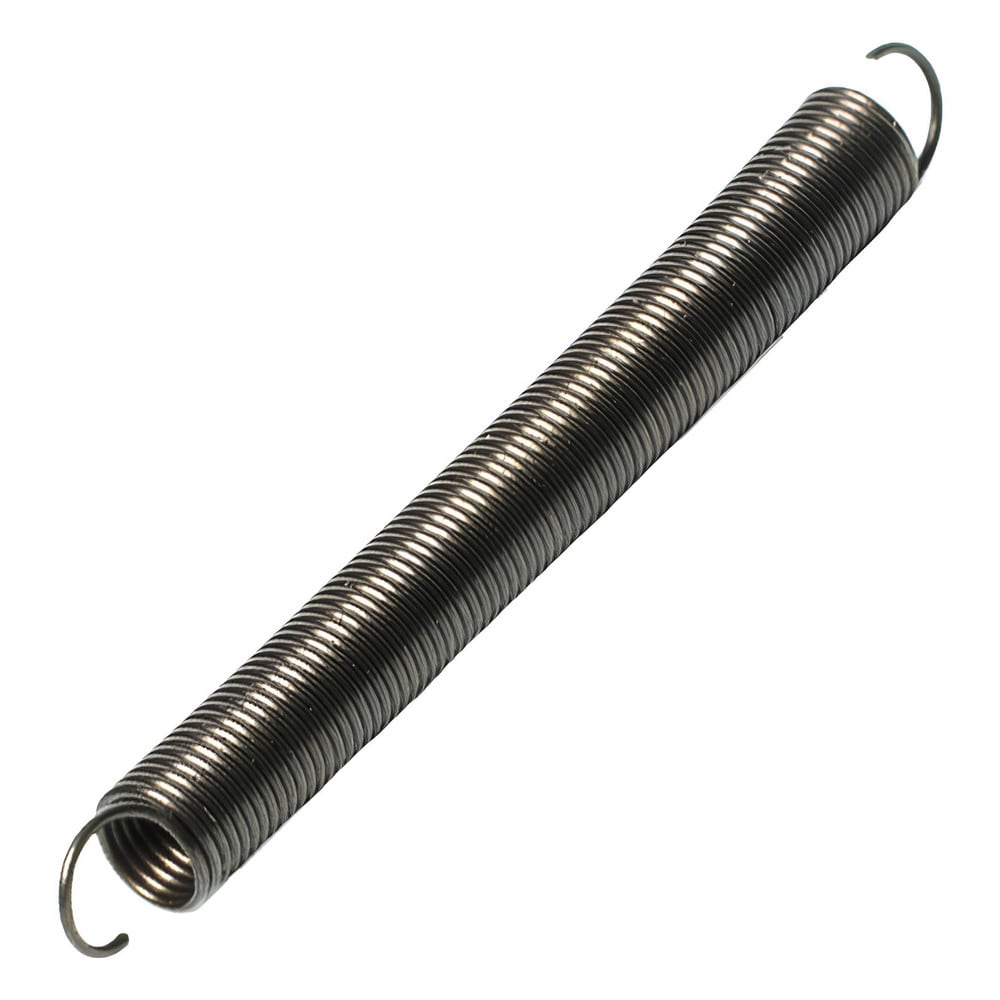

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 03368842
Brand: Associated Spring Raymond
Model #: MH12501486500M
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 1.2500 |
| Spring Rate | 17.9000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 6.7960 |
| Initial Tension (Lb.) | 7.95 |
| Maximum Extended Length (Decimal Inch) | 10.9900 |
| Free Length (Inch) | 6-1/2 |
| Inside Hook Length (Fractional Inch) | 6-1/2 |
| Standards | AMS 5112; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (Decimal Inch) | 0.1480 |
| UNSPSC Code | 31161907 |
