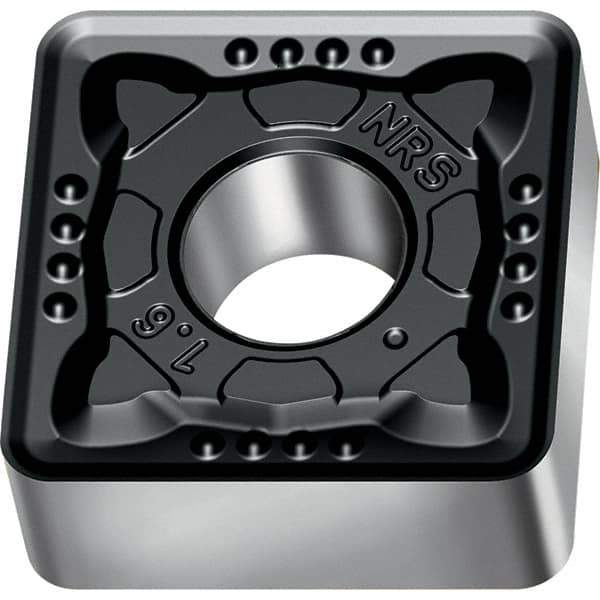

Walter - SNMG NRS Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 90° Square, 19.05mm Inscr Circle, 6.35mm Thick, 1.6mm Corner Radius
Item #: 38763520
Brand: Walter
Model #: 7053932
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Length (mm) | 19.05 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | NRS |
| Insert Length (Decimal Inch) | 0.7500 |
| OverallLength (mm) | 19.05 |
| Overall Length (Decimal Inch) | 0.7500 |
| Insert Length (mm) | 19.0500 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMG190616-NRS WSM20S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7053932 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMG-NRS |
| Maximum Depth of Cut (mm) | 19.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Cutting Width (mm) | 19.05 |
| Shape | Square |
