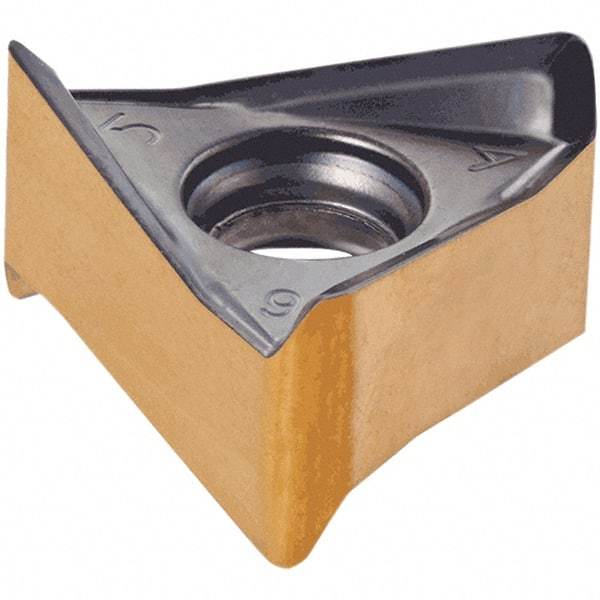

Iscar - H690 TNKX100508 PNTR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 4.7mm Thick, 6.2mm Inscribed Circle, 0.8mm Corner Radius
Item #: 38760054
Brand: Iscar
Model #: 3301588
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 TNKX |
| Insert Size | 100508 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 8.60 |
| Length (Decimal Inch) | 0.3390 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2440 |
| Thickness (mm) | 4.70 |
| Thickness (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 TNKX 100508PNTR |
| ISO Number | H690 TNKX 100508PNTR |
| ANSI Number | H690 TNKX 100508PNTR |
