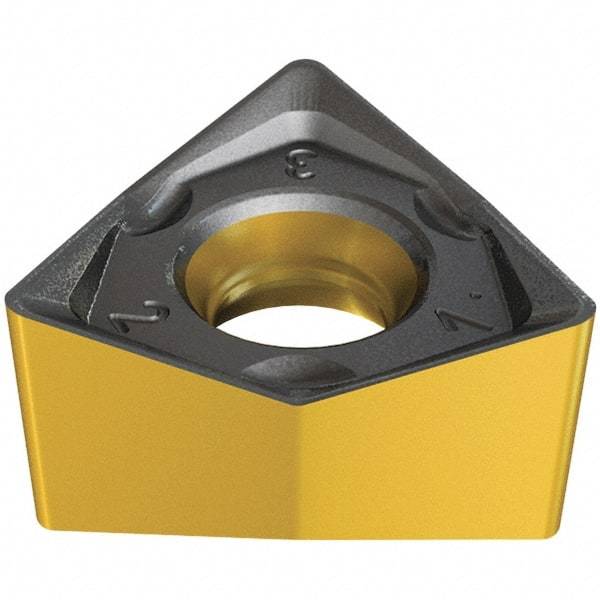

Iscar - H690 WNMU0705 MM Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.9mm Thick, 11.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 38749875
Brand: Iscar
Model #: 5606761
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 WNMU |
| Insert Size | 0705 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 7.30 |
| Length (Decimal Inch) | 0.2870 |
| Inscribed Circle (mm) | 11.50 |
| Inscribed Circle (Decimal Inch) | 0.4530 |
| Thickness (mm) | 5.90 |
| Thickness (Decimal Inch) | 0.2320 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Trigon |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 7.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 WNMU 0705PNN-MM |
| ISO Number | H690 WNMU 0705PNN-MM |
| ANSI Number | H690 WNMU 0705PNN-MM |
