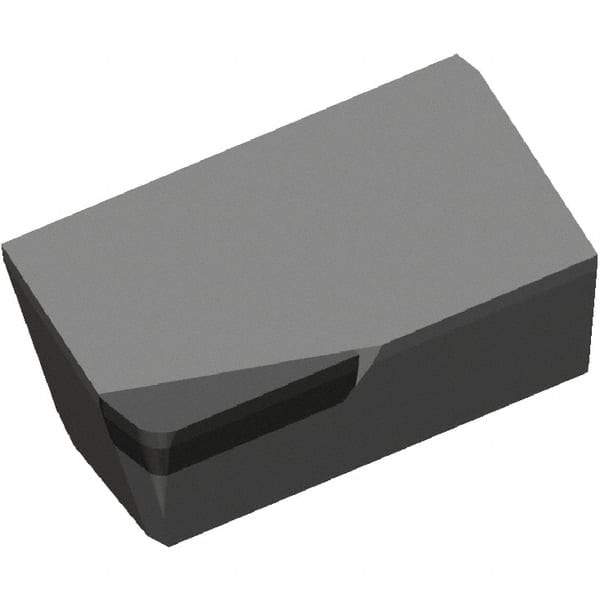

Kennametal - KSDR100031 Grade KD1400 Diamond Tipped Milling Insert - Uncoated, 0.258" Thick, 0.8mm Corner Radius
Item #: 38141891
Brand: Kennametal
Model #: 6042984
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | KSDR |
| Insert Size | 100031 |
| Material | Diamond Tipped |
| Manufacturer's Grade | KD1400 |
| Coating | Uncoated |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2580 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 10.000 |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Irregular |
| Insert Hand | Right Hand |
| ISO Number | KSDR100031E1W4S |
