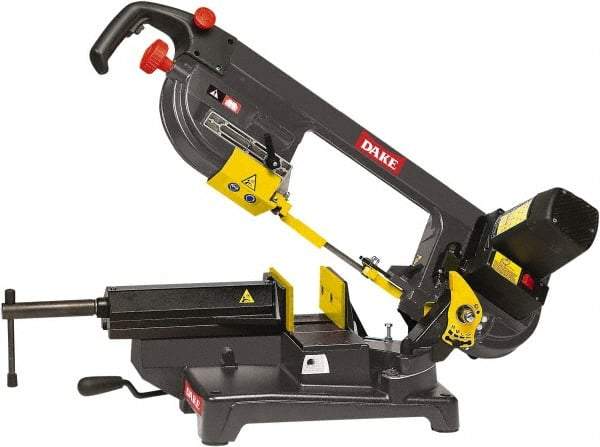

Dake - 6 x 5" Max Capacity, Semi-Automatic Geared Head Horizontal Bandsaw - 262 & 196 SFPM Blade Speed, 110 Volts, 45°, 2.5 hp, 1 Phase
Item #: 38005625
Brand: Dake
Model #: 983107-1
Exact Tooling IR#: 04
Features and Benefits
Semi-automatic saws are similar to manual saws, but the saw head is programmed to automatically rise to the starting position after the cut is completed. The operator must then reposition the material to make another cut.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial and feature 3 to 4 fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Semi-Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 6 x 5 |
| Maximum Capacity (Rounds) (Inch) | 6 |
| Phase | 1 |
| Voltage | 110 |
| Coolant System | No |
| Angular Cuts at 45 Degrees (Inch) | 4 (Round); 4 (Square); 4 (Rectangular) |
| Blade Width (Decimal Inch) | 0.5000 |
| Blade Speeds (SFPM) | 262; 196 |
| Blade Length (Inch) | 68-1/4 |
| Blade Thickness (Decimal Inch) | 0.0250 |
| Blade Guide Type | Bimetal |
| Includes | Bi-Metal Blade; Cutting Speeds and Feed Guide |
| Horsepower (HP) | 2.50 |
| Base Width (Inch) | 18 |
| Base Depth (Inch) | 39 |
| Certification | CE |
| Warranty | Mfr's One Year Warranty |
