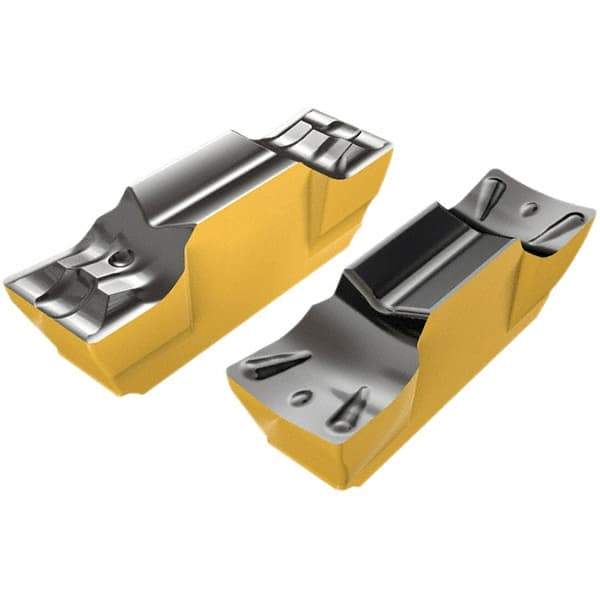

Iscar - 2002GEMI Grade IC808, 2mm Cutting Width Carbide Grooving Insert - 0.8mm Max Depth of Cut, 0.2mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 37960689
Brand: Iscar
Model #: 3302934
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEMI |
| Insert Size | 2002 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 0.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0310 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 8 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | Cut Grip |
| Rake Angle | 8 |
| ISO Number | GEMI 2002N IC808 |
| Manufacturers Catalog Number | 3302934 |
| Overall Width (mm) | 1.60 |
| Overall Width (Decimal Inch) | 0.0630 |
