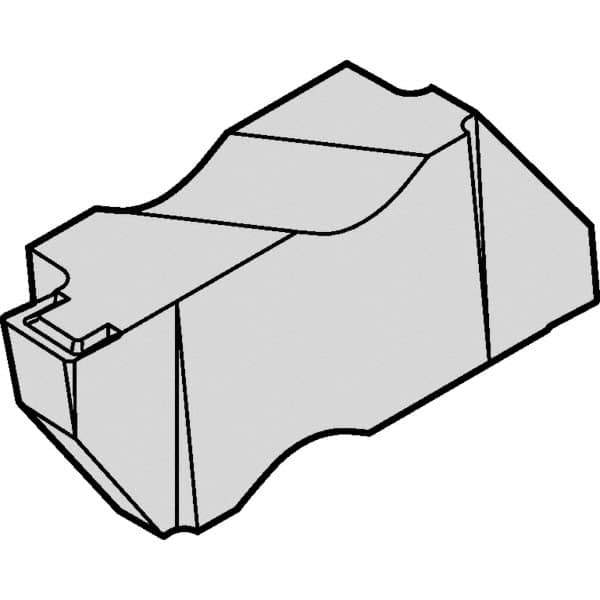

Kennametal - 4NG K Grade KCP10B, 1/8" Cutting Width Carbide Grooving Insert - 3.8mm Max Depth of Cut, Right Hand, 0.19mm Corner Radius, TiOCN Finish
Item #: 37951407
Brand: Kennametal
Model #: 5967885
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.80 |
| Manufacturer's Grade | KCP10B |
| Coating | TiOCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 11.50 |
| Relief Angle | 3 |
| Insert Seat Size | 4 |
| Chipbreaker | K |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.19 |
| Coating Process | CVD |
| Series | Top Notch |
| Rake Angle | 10 |
| Overall Width (mm) | 6.50 |
| Insert Thickness (mm) | 11.5060 |
