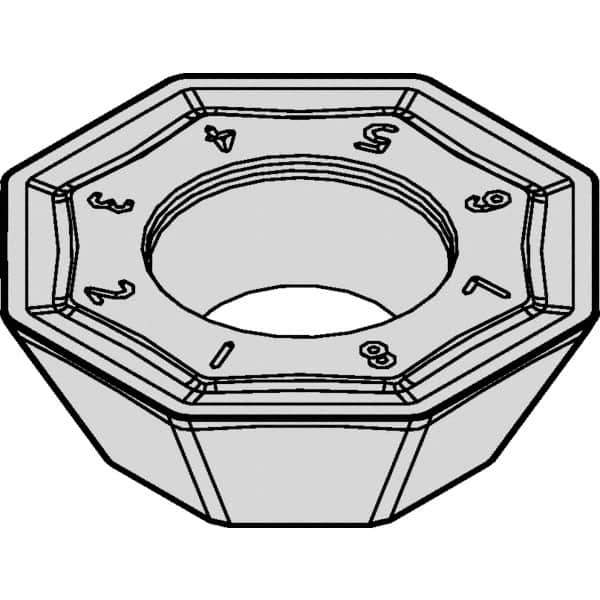

Kennametal - OFKT53 GB Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 5mm Thick, 37/64" Inscribed Circle, 0.8mm Corner Radius
Item #: 37856424
Brand: Kennametal
Model #: 6177925
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFKT |
| Insert Size | 53 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Length (mm) | 6.00 |
| Inscribed Circle (Inch) | 37/64 |
| Inscribed Circle (Decimal Inch) | 0.5781 |
| Thickness (mm) | 5.00 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.50 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | GB |
| ISO Number | OFKT06L5AFENGB |
| ANSI Number | OFKT53AFEN4GB |
