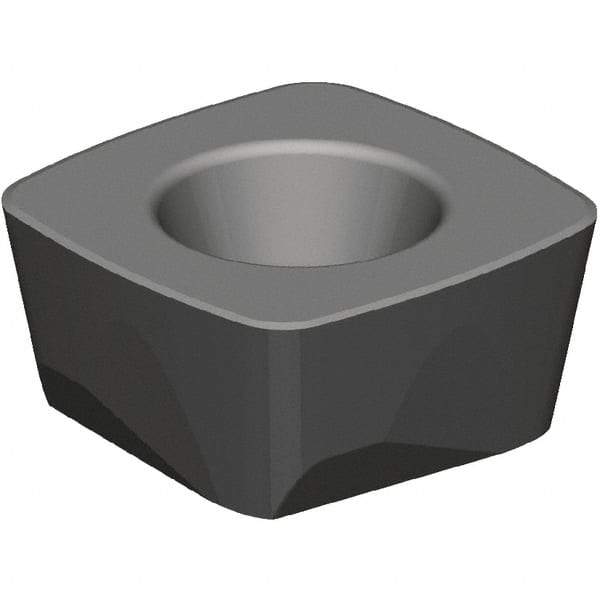

Kennametal - XPPW060310 D Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 1/8" Thick, 7mm Inscribed Circle, 1mm Corner Radius
Item #: 37823754
Brand: Kennametal
Model #: 6187511
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPPW |
| Insert Size | 060310 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (mm) | 7.00 |
| Length (mm) | 7.00 |
| Inscribed Circle (mm) | 7.00 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | D |
| ISO Number | XPLT060310SRD |
