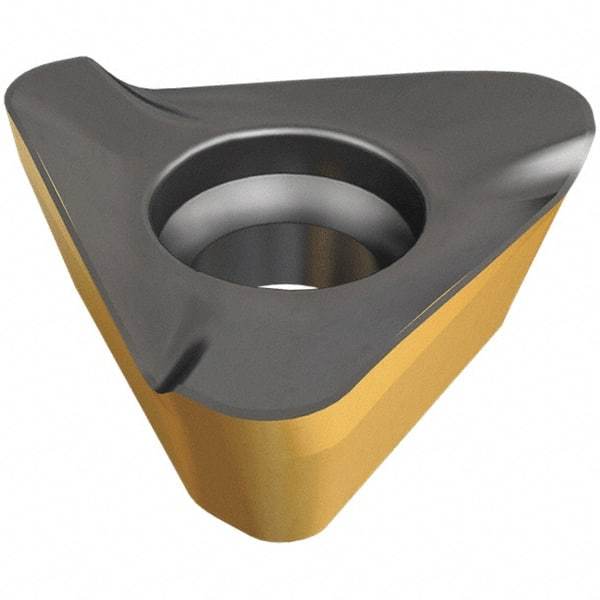

Iscar - HM390 TDKR150508 PDRHM Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.85mm Thick, 11.4mm Inscribed Circle, 0.8mm Corner Radius
Item #: 37811718
Brand: Iscar
Model #: 5668463
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKR |
| Insert Size | 150508 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 16.70 |
| Length (Decimal Inch) | 0.6570 |
| Inscribed Circle (mm) | 11.40 |
| Inscribed Circle (Decimal Inch) | 0.4490 |
| Thickness (mm) | 5.85 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDRHM |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TDKR 150508PDR |
| ISO Number | HM390 TDKR 150508PDR |
| ANSI Number | HM390 TDKR 150508PDR |
