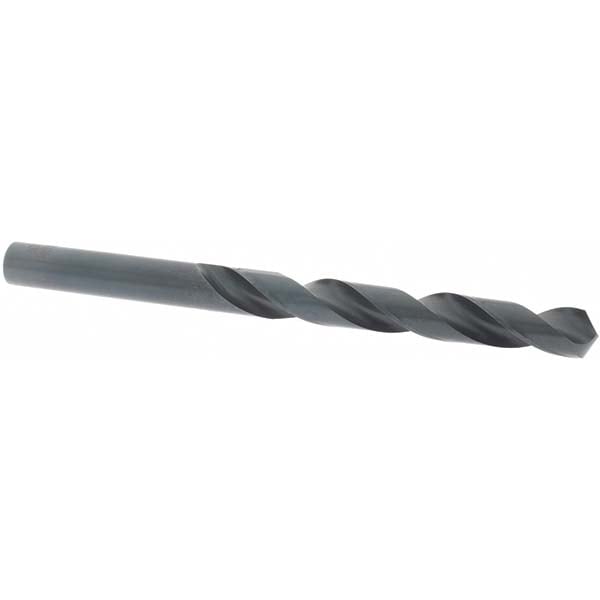

Jobber Drill: 10.00 mm Dia, 118 deg Point, High Speed Steel
Item #: 64702657
Brand: Import
Model #: 27429
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Flute Length (Inch) | 3-47/64 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 130.00 |
| Overall Length (Inch) | 5-1/8 |
| Overall Length (Decimal Inch) | 5.1250 |
| Spiral Type | Regular |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7344 |
| Shank Length (mm) | 35 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Oxide |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Flute Length (Inch) | 3-47/64 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 130.00 |
| Overall Length (Inch) | 5-1/8 |
| Overall Length (Decimal Inch) | 5.1250 |
| Spiral Type | Regular |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7344 |
| Shank Length (mm) | 35 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| UNSPSC Code | 23241634 |
| MSC Part # | 64702657 |
| Mfr Part # | 27429 |
| Country of Origin Country of Origin is subject to change | China |
