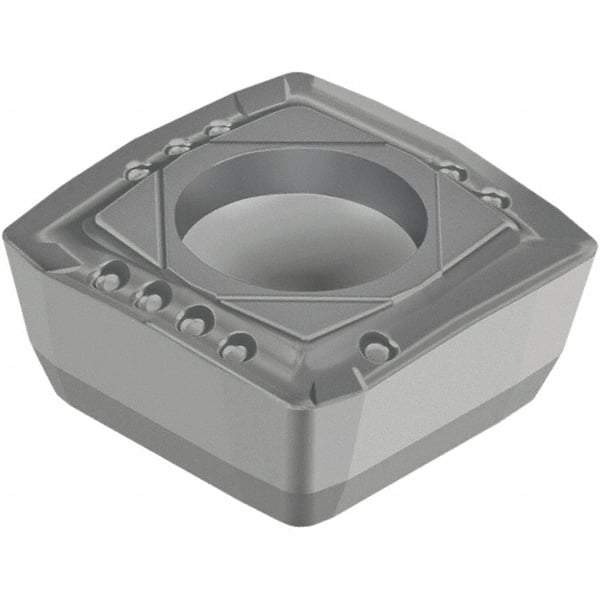

Walter - P4848 E57 Grade WKP35S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 17.5mm Inscribed Circle
Item #: 37316833
Brand: Walter
Model #: 6169080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 8 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Inscribed Circle (mm) | 17.50 |
| Inscribed Circle (Decimal Inch) | 0.6890 |
| Thickness (mm) | 5.54 |
| Thickness (Decimal Inch) | 0.2180 |
| Corner Radius (mm) | 0.99 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Shape | Square |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E57 |
