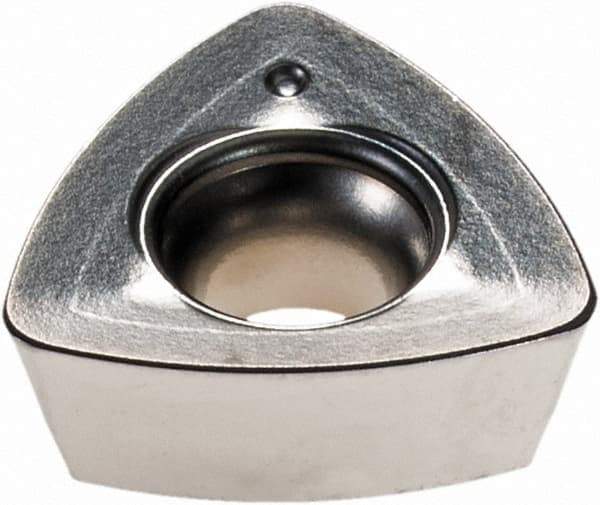

Walter - P26335R10 Grade WSM35S Carbide Milling Insert - TiAlN/Al2O3/Al Finish, 1/8" Thick, 0.266" Inscribed Circle, 0.79mm Corner Radius
Item #: 37122843
Brand: Walter
Model #: 6159591
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P26335 |
| Insert Size | R10 |
| Material | Carbide |
| Material Grade | S35/M35 |
| Manufacturer's Grade | WSM35S |
| Coating | TiAlN/Al2O3/Al |
| Inscribed Circle (Decimal Inch) | 0.2660 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Triangle |
| Manufacturers Catalog Number | P26335R10 |
