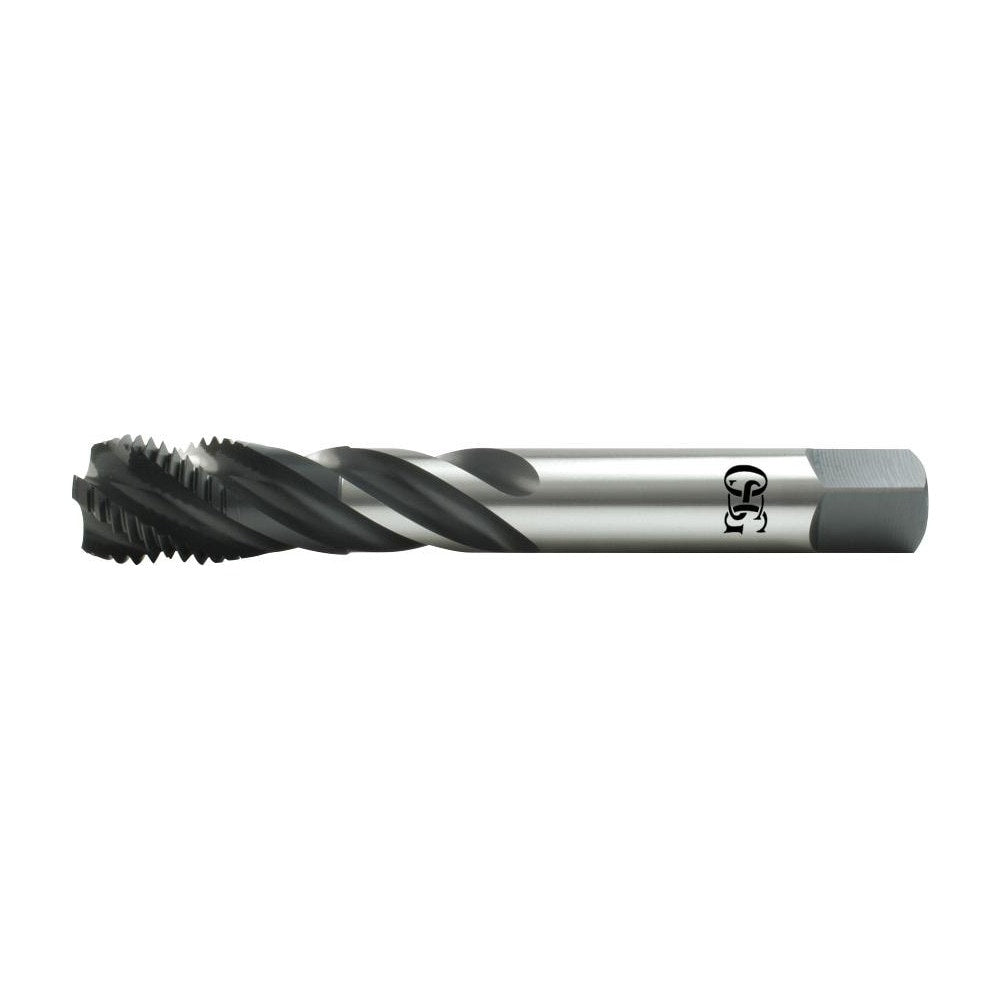

Spiral Flute Tap:
Item #: 87492179
Brand: OSG
Model #: 1301502701
Product Specifications
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Vanadium High-Speed Steel |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Carbon Steel; Die Steel; Hardened Steel |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Proprietary Coating/Finish | Oxide |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Threads per Inch | 20 |
| Thread Length (Decimal Inch) | 0.6140 |
| Overall Length (mm) | 1.00 |
| Primary Workpiece Material Code | P; H; K; M |
| Neck Length (mm) | 5.10 |
| Square Length (mm) | 12.70 |
| Square Length (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.2750 |
| Flute Style | Spiral |
| Series | 13015 |
| UNSPSC Code | 27112806 |
| Country of Origin | Japan |
