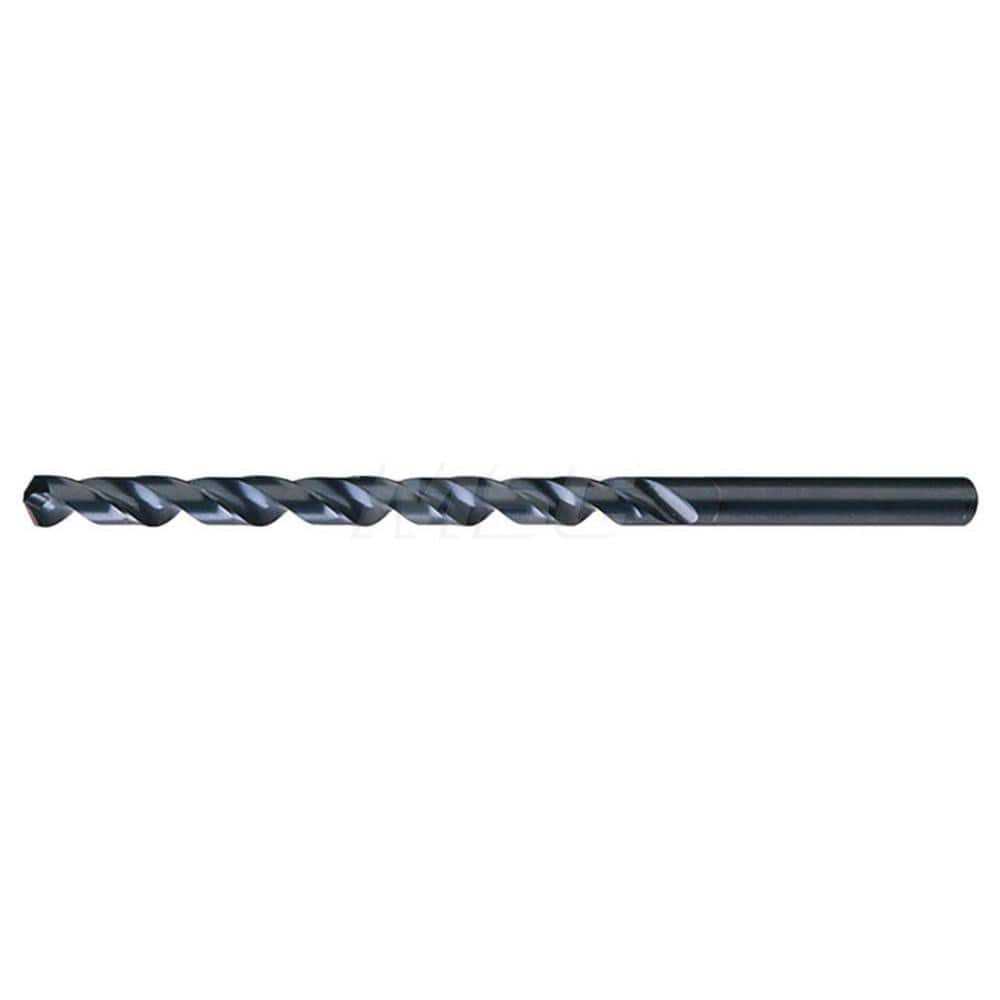

Extra Length Drill Bit: 0.1406″ Dia, 118 °, High Speed Steel Oxide Finish, 8″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series 120X
Item #: 36854669
Brand: Chicago-Latrobe
Model #: 50463
Product Specifications
| Overall Length (Inch) | 8 |
| Flute Length (Inch) | 5-1/2 |
| Tool Material | High Speed Steel |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 120X |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Tool Application | Long Reach Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Cast Iron; Steel |
| Standards | California PROP 65 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.1406 |
| Shank Diameter (mm) | 3.57 |
| Shank Length (Decimal Inch) | 5.0000 |
| Shank Length (mm) | 63.50 |
