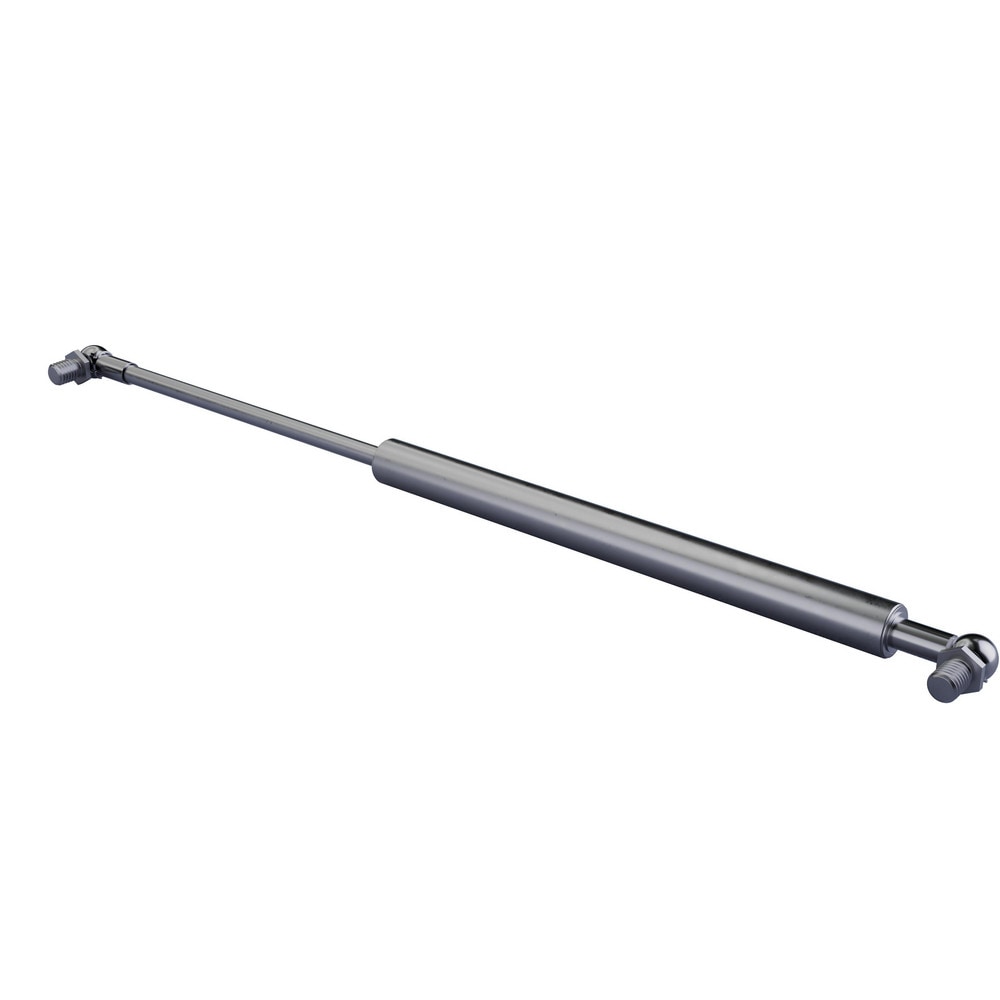

Extended Life Gas Spring: 0.2400" Rod Dia, 0.5900" Tube Dia, 40.00 lb Capacity
Item #: 02395994
Brand: Industrial Gas Springs
Model #: 66S002288XX0178
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (Decimal Inch) | 0.2400 |
| Tube Diameter (Decimal Inch) | 0.5900 |
| End Fitting Connection | Threaded End |
| Extended Length (Decimal Inch) | 12.1300 |
| Compressed Length (Decimal Inch) | 8.11 |
| Extension Force | 48 |
| Stroke Length (Decimal Inch) | 4.0200 |
| Thread Size (mm) | M6 x 1 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 40.00 |
| Special Item Information | Stainless Steel Ball Joint |
| Finish Coating | Uncoated |
| Spring Rate | 2.0000 |
| UNSPSC Code | 31162800 |
