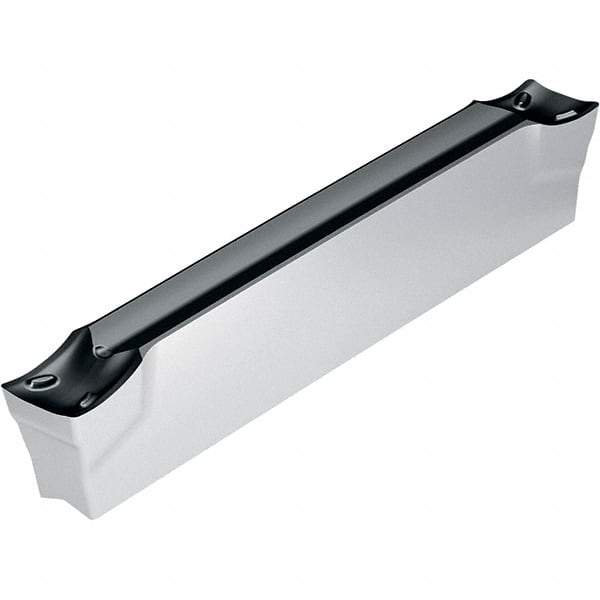

Walter - 1E250R6GX CF6 Grade WSM33S, 2.5mm Cutting Width Carbide Grooving Insert - Right Hand, 0.2mm Corner Radius, TiAlN/Al2O3/ZrCN Finish
Item #: 36288330
Brand: Walter
Model #: 6090178
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GX |
| Insert Size | 1E250R6 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Material Grade | S30/M30/P35 |
| Manufacturer's Grade | WSM33S |
| Coating | TiAlN/Al2O3/ZrCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Chipbreaker | CF6 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 16.60 |
| Overall Length (Decimal Inch) | 0.6535 |
| Series | Tiger-tec |
| ISO Number | GX16-1E250R6-CF6 |
| Manufacturers Catalog Number | GX16-1E250R6-CF6 |
