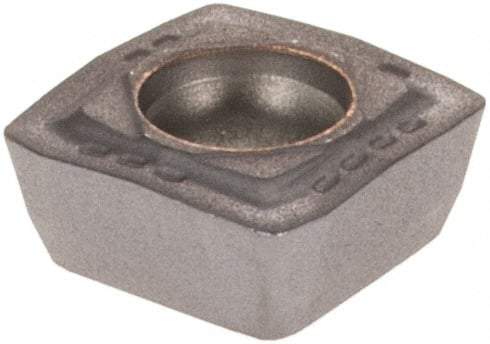

Walter - P4841 A57 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Square, 4.9mm Inscribed Circle
Item #: 36261410
Brand: Walter
Model #: 6154467
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 1 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 4.90 |
| Inscribed Circle (Decimal Inch) | 0.1930 |
| Thickness (mm) | 1.96 |
| Thickness (Decimal Inch) | 0.0770 |
| Corner Radius (mm) | 0.28 |
| Corner Radius (Decimal Inch) | 0.0110 |
| Shape | Square |
| Coating | TiCN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | A57 |
