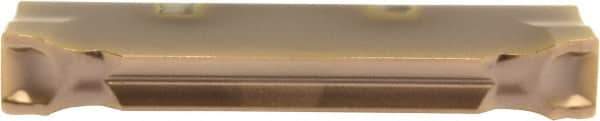

Sumitomo - 5002GCMN GL Grade AC425K, 0.1968504" Cutting Width Carbide Grooving Insert - 1" Max Depth of Cut, Neutral, 0.2mm Corner Radius
Item #: 36076990
Brand: Sumitomo
Model #: 186PALT
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GCMN |
| Insert Size | 5002 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Inch) | 0.1969 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | AC425K |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.09 |
| Cutting Height (Inch) | 0.1610 |
| Cutting Height (Decimal Inch) | 0.1610 |
| Lead Angle | 0 |
| Relief Angle | 5 |
| Insert Seat Size | 5 |
| Chipbreaker | GL |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 0.0079 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GND |
| Overall Width (mm) | 5.00 |
| Overall Width (Inch) | 0.1969 |
| Overall Width (Decimal Inch) | 0.1969 |
