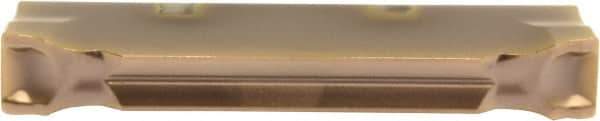

Sumitomo - 6250GCMN GL Grade AC830P, 1/4" Cutting Width Carbide Grooving Insert - 1" Max Depth of Cut, Neutral, 0.2mm Corner Radius
Item #: 36076693
Brand: Sumitomo
Model #: 18RBW13
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GCMN |
| Insert Size | 6250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Inch) | 1/4 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | AC830P |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.50 |
| Cutting Height (Inch) | 0.1770 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Lead Angle | 0 |
| Relief Angle | 5 |
| Insert Seat Size | 6 |
| Chipbreaker | GL |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 0.0079 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GND |
| Overall Width (mm) | 6.35 |
| Overall Width (Inch) | 1/4 |
| Overall Width (Decimal Inch) | 0.2500 |
