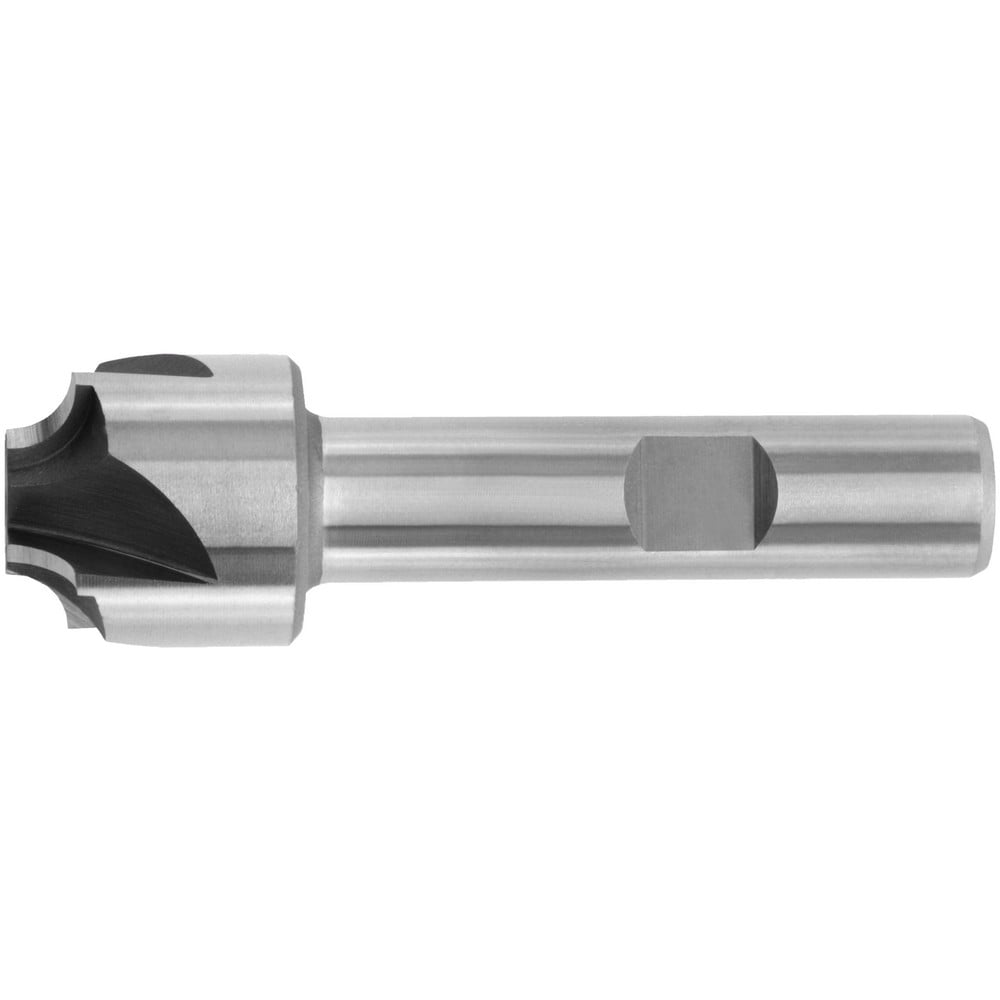

Corner Rounding End Mill: 1/4" Radius, 1" Dia, 4 Flutes, 19.05 mm LOC, High Speed Steel
Item #: 18634378
Brand: Cleveland
Model #: C75379
Product Specifications
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Length of Cut (mm) | 19.0500 |
| End Mill Material | High Speed Steel |
| Number Of Flutes | 4 |
| Radius (Decimal Inch) | 0.2500 |
| Radius (Inch) | 1/4 |
| Radius (mm) | 6.35 |
| Shank Type | Weldon Flat; Straight |
| Flute Type | Spiral |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5 |
| Shank Diameter (mm) | 12.7000 |
| Overall Length (Inch) | 3 |
| Overall Length (mm) | 76.2000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Material Grade | M2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | CRE |
| Coolant Through | No |
| Single Or Double End | Single End |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 27112803 |
