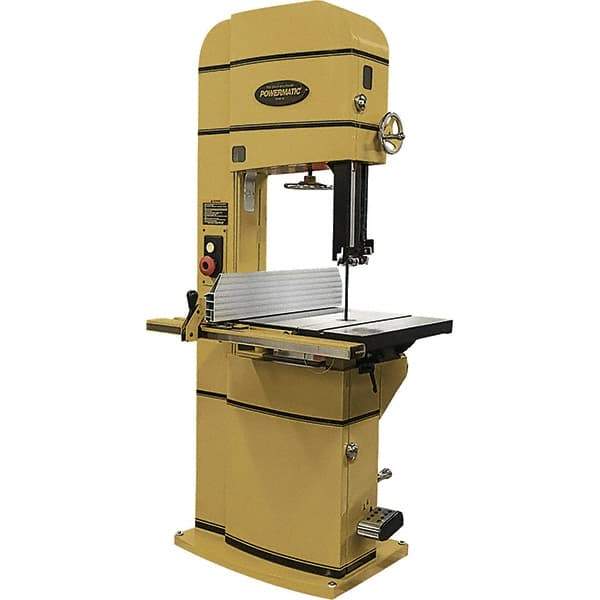

Powermatic - 18" Throat Capacity, Step Pulley Vertical Bandsaw - 2,300/4,400 SFPM, 5 hp, Single Phase
Item #: 35293679
Brand: Powermatic
Model #: 1791800B
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Drive Type | Step Pulley |
| Throat Capacity (Decimal Inch) | 18.0000 |
| Height Capacity (Inch) | 18 |
| Phase | 1 |
| Blade Width (Inch) | 1/8 to 1-1/2 |
| Blade Speeds (SFPM) | 2300/4400 |
| Blade Length (Inch) | 160 |
| Table Length (Inch) | 24 |
| Table Width (Inch) | 27 |
| Floor to Table Height (Inch) | 38 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 5.00 |
| Voltage | 230 |
| Warranty | 5-Year |
