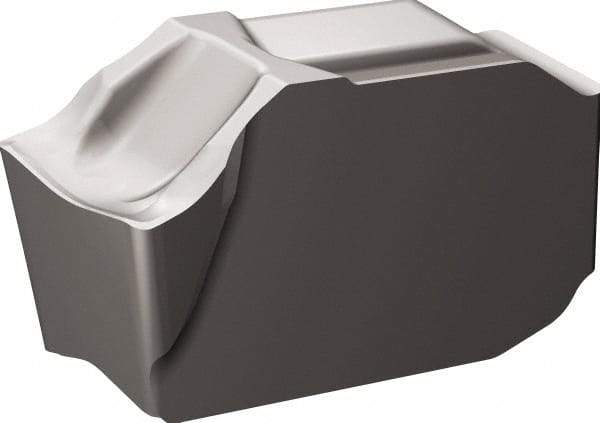

Sandvik Coromant - FQD-N ML Grade 1040, 2.5mm Cutting Width Carbide Grooving Insert - Neutral, TiAlN Finish
Item #: 35015023
Brand: Sandvik Coromant
Model #: 6656928
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | F |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Manufacturer's Grade | 1040 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.10 |
| Cutting Height (Decimal Inch) | 0.1220 |
| Relief Angle | 7 |
| Insert Seat Size | F |
| Chipbreaker | ML |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3937 |
| Series | CoroMill QD |
| ISO Number | QD-NF-0250-020E-ML 1040 |
| Insert Thickness (Decimal Inch) | 0.1220 |
