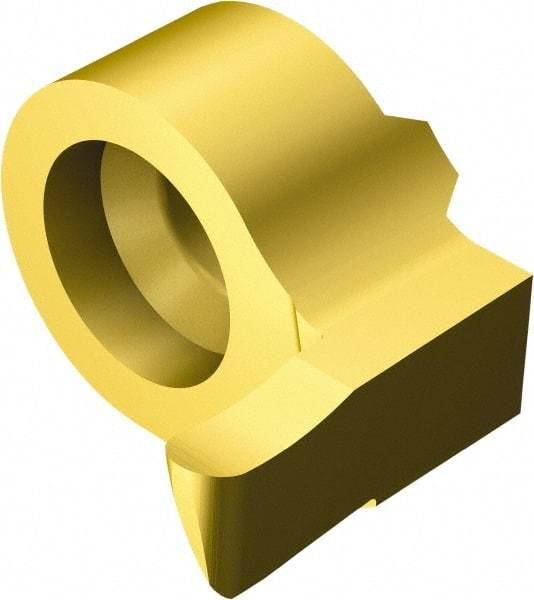

Sandvik Coromant - MB..FBR Grade 1025, 3mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 1.5mm Corner Radius, TiAlN/TiN Finish
Item #: 35002401
Brand: Sandvik Coromant
Model #: 6879618
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB..FBR |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 90 |
| Minimum Corner Radius (Decimal Inch) | 0.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0006 |
| Corner Radius (mm) | 1.5 |
| Corner Radius (Decimal Inch) | 0.059055 |
| Coating Process | PVD |
| Overall Length (mm) | 11.20 |
| Overall Length (Decimal Inch) | 0.4409 |
| Series | CoroCut MB |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MB-09FBR300-15-14R 1025 |
