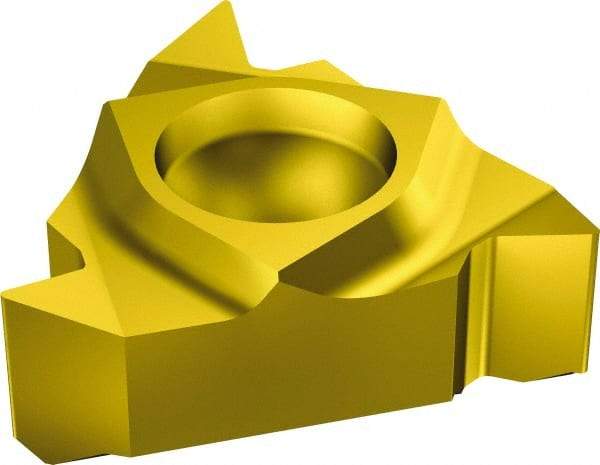

Sandvik Coromant - 166 Internal Left Hand Whitworth Laydown Threading Insert - Grade 1020, TiN Coated Carbide, 6.35mm Inscribed Circle
Item #: 35000678
Brand: Sandvik Coromant
Model #: 5735254
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 166 |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | Whitworth |
| Manufacturer's Grade | 1020 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating | TiN |
| Coating Process | PVD |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.004331 |
| Corner Radius (mm) | 0.11 |
| Corner Radius (Decimal Inch) | 0.0043 |
| Chipbreaker | A |
| Number of Teeth Per Side | 1 |
| Series | T-Max U-Lock |
| Insert Size | 11L |
