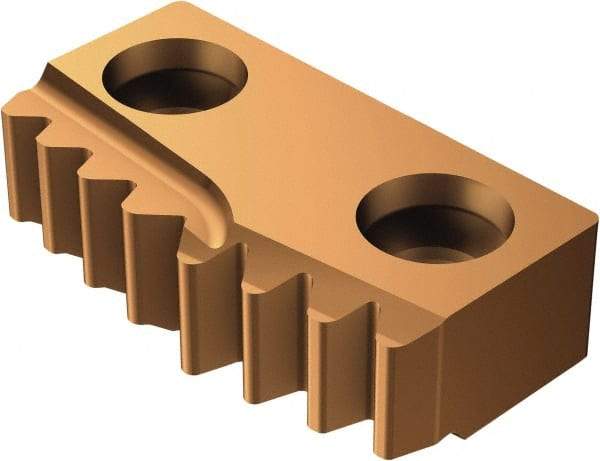

Sandvik Coromant - 16624 A Grade 1125, Internal API Round Threading Insert - 10 TPI Int Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 34998559
Brand: Sandvik Coromant
Model #: 5742738
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166 |
| Insert Size | 24 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | API Round |
| Manufacturer's Grade | 1125 |
| Internal Pitch/TPI | 10 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R166.39L-24RD04-100 1125 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Series | T-Max Twin-Lock |
| Chipbreaker | A |
| Maximum Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Tip to Top of Insert (mm) | 6.35 |
| Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Blade Height (mm) | 6.35 |
| Blade Height (Decimal Inch) | 0.2500 |
