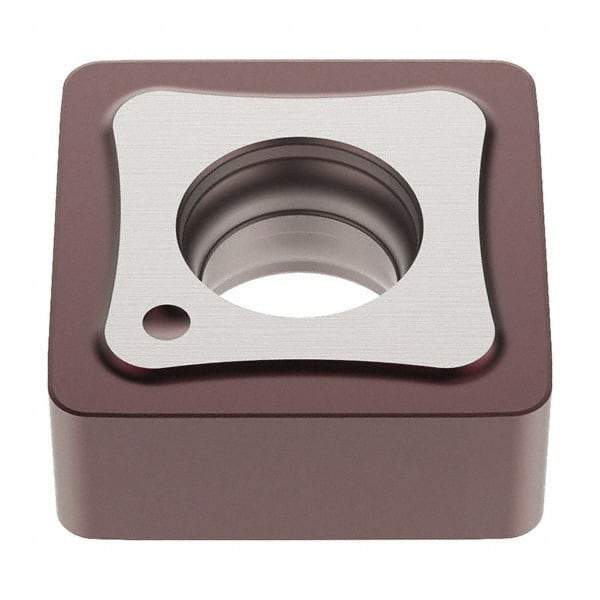

Seco - SNMU120410 Grade MK2050 Carbide Milling Insert - TiSiN/TiAlN Finish, 5mm Thick, 12mm Inscribed Circle, 1mm Corner Radius
Item #: 33672726
Brand: Seco
Model #: 48152
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMU |
| Insert Size | 120410 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MK2050 |
| Coating | TiSiN/TiAlN |
| Width (mm) | 12.00 |
| Length (mm) | 12.00 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (mm) | 5.00 |
| Corner Radius (mm) | 1.00 |
| Rake Angle | 0 |
| Rake | Negative |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | Chamfered & Honed |
| ISO Number | SNMU120410TN-MD13 |
