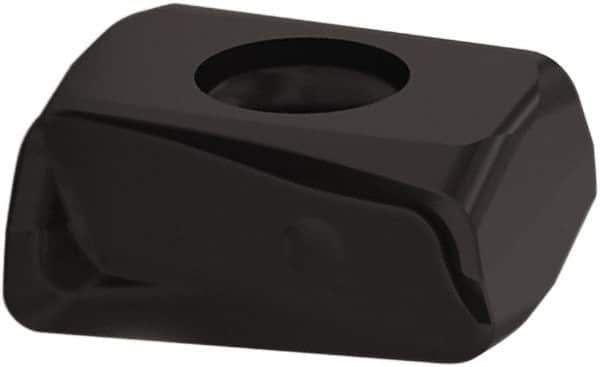

Seco - LOEX120708 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 13/32" Thick, 12mm Inscribed Circle, 1/32" Corner Radius
Item #: 33672684
Brand: Seco
Model #: 52928
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOEX |
| Insert Size | 120708 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (mm) | 7.50 |
| Length (mm) | 14.20 |
| Inscribed Circle (mm) | 12.00 |
| Thickness (Inch) | 13/32 |
| Thickness (Decimal Inch) | 0.4063 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Rake Angle | 36 |
| Rake | Negative |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | Honed |
| ISO Number | LOEX120708R-M09 |
