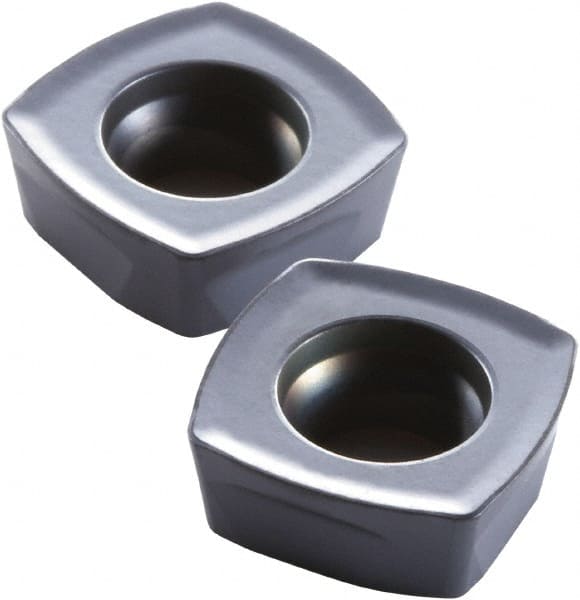

SXMT120410SR-GM XP2025 Carbide Milling Insert TiAlN Finish, 1.3mm Long x 3/16″ Thick x 3/16″ Wide
Item #: 33626854
Brand: OSG
Model #: 7826022
Product Specifications
| Insert Style | SXMT |
| Insert Size | 120410 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | XP2025 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (mm) | 1.00 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Insert Hand | Right Hand |
| Relief Angle | 9.00 |
| Coating Process | PVD |
| Chip Breaker | GM |
| Coating/Finish | TiAlN |
| Length | 1.30 |
| Width (Decimal Inch - 4 Decimals) | 0.1875 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
