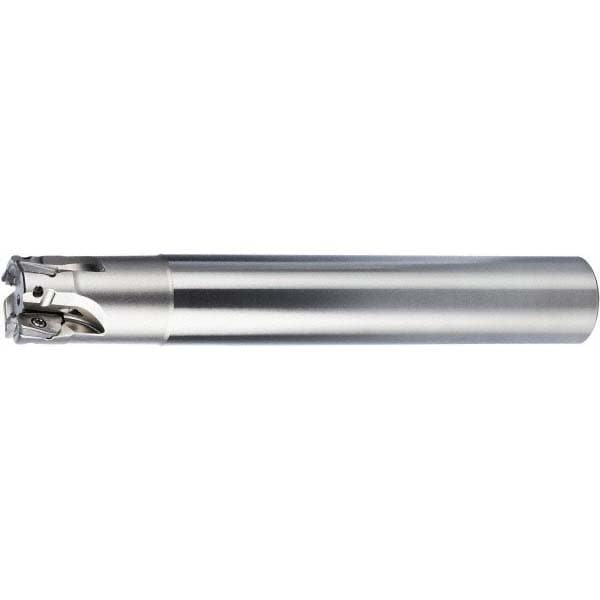

Indexable Square-Shoulder End Mill: PSE11R075SA075-3L, 3/4" Cut Dia, 2.362" Max Depth of Cut, 3/4" Dia Cylindrical Shank
Item #: 55702351
Brand: OSG
Model #: 7801337
Product Specifications
| Cutting Diameter | 0.7500 in |
| Cutting Diameter | 3/4 |
| Overall Length (Decimal Inch) | 6.2990 |
| Maximum Depth of Cut (Decimal Inch) | 2.3620 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 6.299 |
| Modular Connection Size | BT30 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 0.7500 in |
| Cutting Diameter | 3/4 |
| Overall Length (Decimal Inch) | 6.2990 |
| Maximum Depth of Cut (Decimal Inch) | 2.3620 |
| Cutter Style | PSE |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78013 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 6.299 |
| Modular Connection Size | BT30 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 55702351 |
| Mfr Part # | 7801337 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
