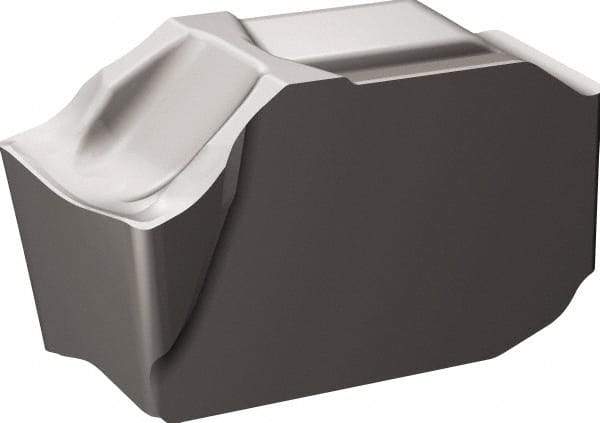

Sandvik Coromant - FQD-N SM Grade 1130, 2.39mm Cutting Width Carbide Grooving Insert - Neutral, AlTiCrN Finish
Item #: 32584310
Brand: Sandvik Coromant
Model #: 7101078
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | F |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.10 |
| Cutting Height (Decimal Inch) | 0.1220 |
| Relief Angle | 7 |
| Chipbreaker | SM |
| Coating Process | PVD |
| Series | CoroMill QD |
| ISO Number | QD-NF-0239-020E-SM 1130 |
| Insert Thickness (Decimal Inch) | 0.1220 |
