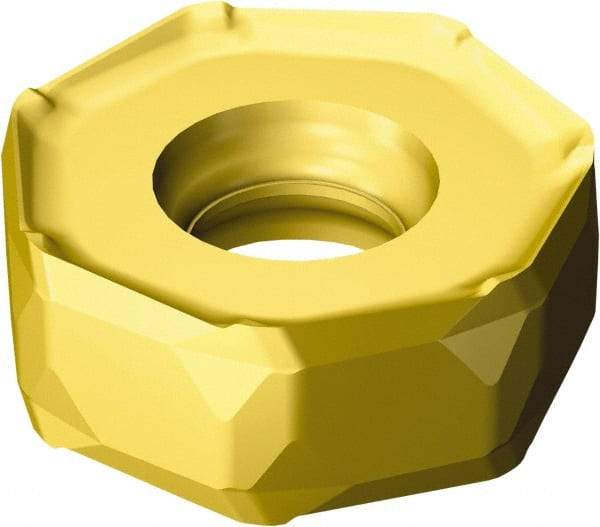

Sandvik Coromant - 745L2109 M50 Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 9mm Thick, 21mm Inscribed Circle, 1mm Corner Radius
Item #: 32583585
Brand: Sandvik Coromant
Model #: 7046736
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 745L |
| Insert Size | 2109 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 21.00 |
| Inscribed Circle (Decimal Inch) | 0.8268 |
| Thickness (mm) | 9.00 |
| Thickness (Decimal Inch) | 0.3543 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Coating Process | CVD |
| Insert Hand | Left Hand |
| Chipbreaker | M50 |
| ISO Number | 745L-2109E-M50 K20W |
