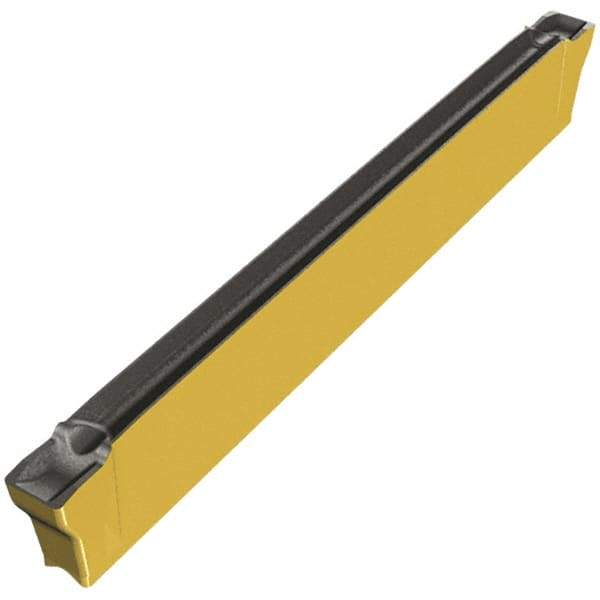

Iscar - DGL3002 Grade IC808, 3mm Cutting Width Carbide Cutoff Insert - Left Hand Lead Angle, TiAlN/AlTiN/TiN Finish
Item #: 32287799
Brand: Iscar
Model #: 6004947
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGL |
| Insert Size | 3002 |
| Lead Angle Direction | Left Hand |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 7 |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturers Catalog Number | DGL 3002C-6D-XL |
