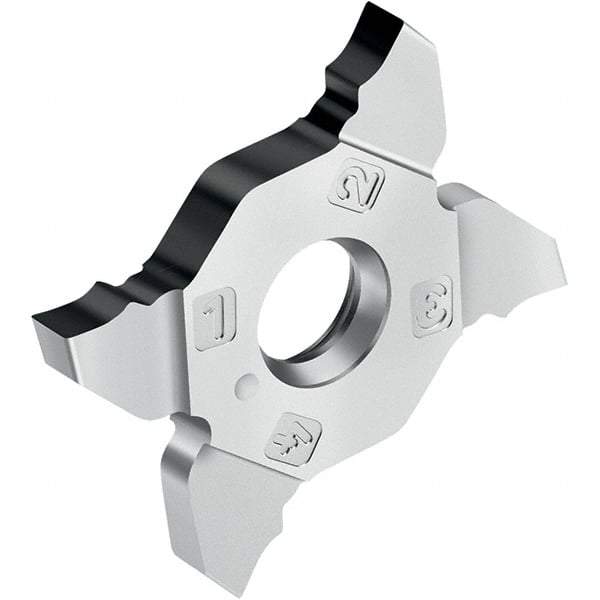

Walter - GD8 Grade WSM23S, 3mm Cutting Width Grooving Insert - 0.2mm Corner Radius, TiAlN+Al2O3+(Al) Finish
Item #: 31731748
Brand: Walter
Model #: 7100219
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | WSM23S |
| Coating | TiAlN+Al2O3+(Al) |
| Cutting Direction | Neutral |
| Chipbreaker | GD8 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.008 |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Series | MX-GD8 |
| Manufacturers Catalog Number | MX22-2E300N02-GD8 WSM23S |
| External Relief Angle | 6 |
