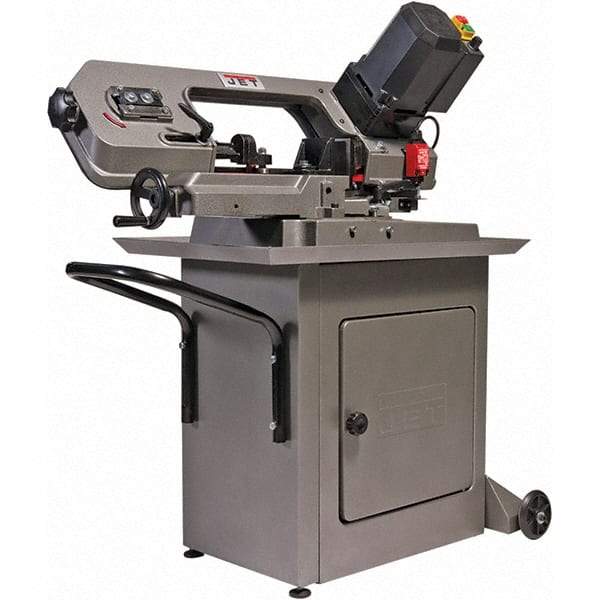

Jet - 5 x 6" Max Capacity, Manual Variable Speed Pulley Horizontal Bandsaw - 80 to 230 SFPM Blade Speed, 115 Volts, 45°, 1/2 hp, 3 Phase
Item #: 31309917
Brand: Jet
Model #: 414558
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Variable Speed Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 5 x 6 |
| Maximum Capacity (Rounds) (Inch) | 5 |
| Phase | 1 |
| Voltage | 115 |
| Coolant System | No |
| Blade Width (Decimal Inch) | 0.5000 |
| Blade Speeds (SFPM) | 80 to 230 |
| Blade Length (Inch) | 64-1/2 |
| Blade Thickness (Decimal Inch) | 0.0250 |
| Blade Guide Type | Bearings |
| Horsepower (HP) | 1/2 |
| Base Width (Inch) | 28 |
| Certification | CSA/CUS |
| Warranty | Mfr's 3 Year Warranty |
