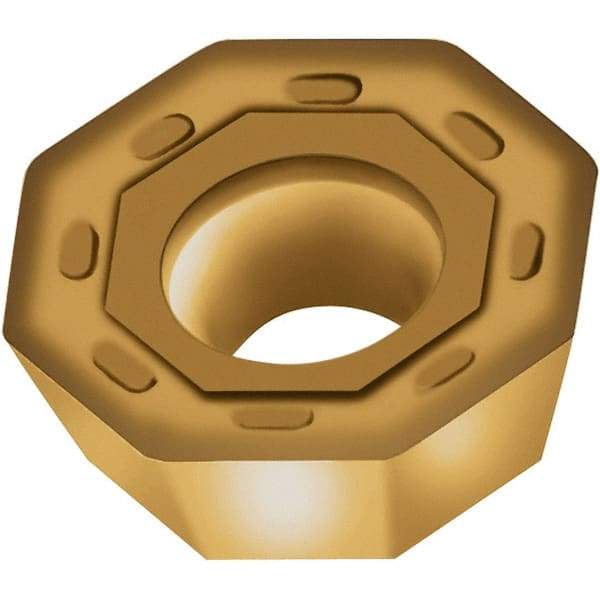

Walter - D57 Grade WSM45X Milling Insert - 5.56mm Thick, 15.88mm Inscribed Circle, 0.8mm Corner Radius
Item #: 31293491
Brand: Walter
Model #: 6841393
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM45X |
| Length (mm) | 6.58 |
| Length (Decimal Inch) | 0.2590 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | D57 |
| Maximum Depth of Cut (mm) | 6.58 |
| Maximum Depth of Cut (Decimal Inch) | 0.2590 |
| Manufacturers Catalog Number | ODMT0605ZZN-D57 WSM45X |
