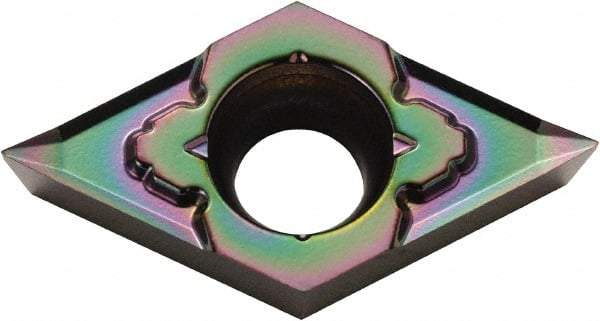

Kyocera - DCGT21502 MP Grade PDL025 Carbide Turning Insert - Al2O3 Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.0039" Corner Radius
Item #: 30993315
Brand: Kyocera
Model #: 8845256
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21502 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | PDL025 |
| Coating | Al2O3 |
| Chip Breaker | MP |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCGT070201MP-CK |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | N |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
