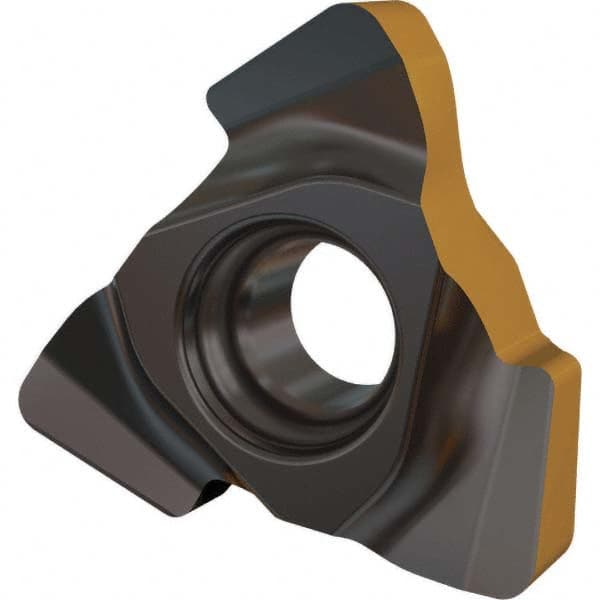

TR90TXMT070204 IC808 Carbide Milling Insert TiAlN/AlTiN/TiN Finish, 2.4mm Thick
Item #: 30974349
Brand: Iscar
Model #: 3320925
Product Specifications
| Insert Style | TXMT |
| Insert Size Code | 070204 |
| Insert Size | 070204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Inscribed Circle (Decimal Inch) | 0.2080 |
| Inscribed Circle (mm) | 5.30 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Series | TOR6MILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0944 |
| Maximum Depth of Cut (mm) | 2.50 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Iso Code | TR90 TXMT 070204 |
| Standards | ISO 13399 |
| Cutter Series Compatibility | TR90 |
| Thickness (mm) | 2.40 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0944 |
