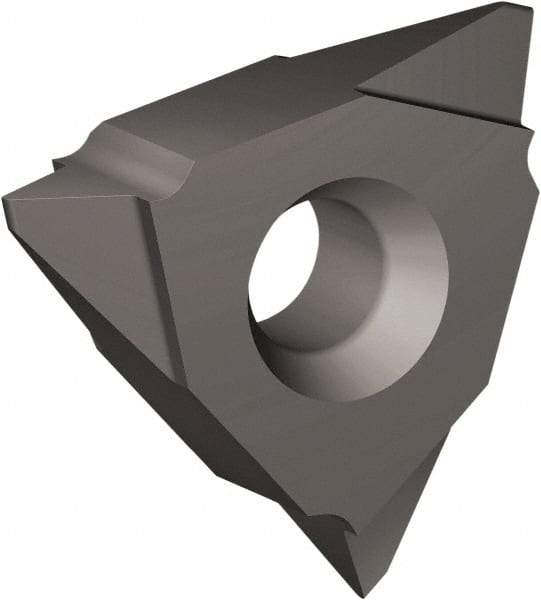

Vargus - 3VER16 Whitworth Grade VTX External On Edge Threading Insert - TiAlN Finish, 12" External TPI, 3/8" Inscribed Circle, Right Hand Cut
Item #: 30923940
Brand: Vargus
Model #: 62022
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3VER |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Thread Standard | Whitworth |
| Manufacturer's Grade | VTX |
| External Threads Per Inch | 12 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1417 |
| Rake | Positive |
| Material | Carbide |
| Coating | TiAlN |
| Hole Diameter (Decimal Inch) | 0.1516 |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Rake Angle | 10 |
