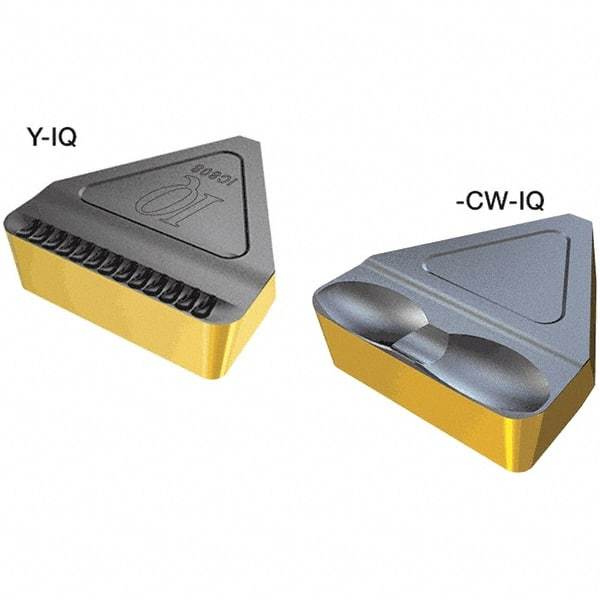

Iscar - 1615TIGER Grade IC808, 16mm Cutting Width Carbide Grooving Insert - Neutral, 1.5mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 30732200
Brand: Iscar
Model #: 6405410
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIGER |
| Insert Size | 1615 |
| Material | Carbide |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.35 |
| Cutting Height (Decimal Inch) | 0.2500 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Overall Length (mm) | 19.99 |
| Overall Length (Decimal Inch) | 0.7870 |
| Series | Cut Grip |
| Included Angle | 61 |
