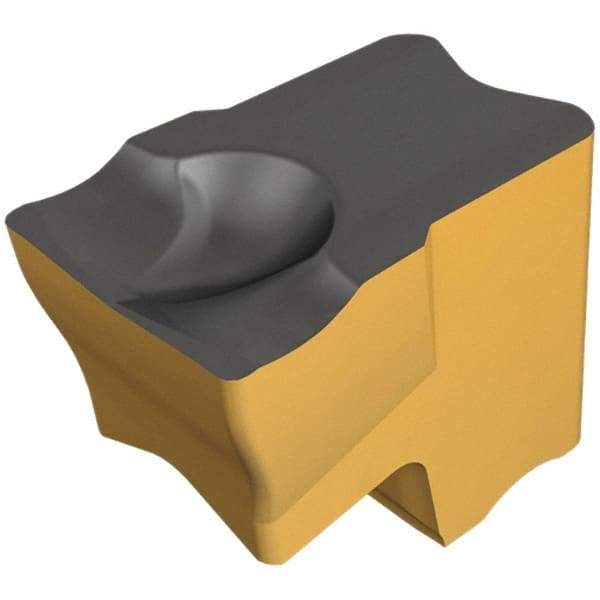

Iscar - TAG4 J IC5400 Grade, 0.157" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.009" Cnr Rad, TiCN/Al2O3/TiN Coated, Single End
Item #: 30731889
Brand: Iscar
Model #: 6080071
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | IC5400 |
| Coating | TiCN/Al2O3/TiN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Full Radius | No |
| Multi-Use Application | Grooving; Milling; Parting |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.0090 |
| Corner Radius (mm) | 0.23 |
