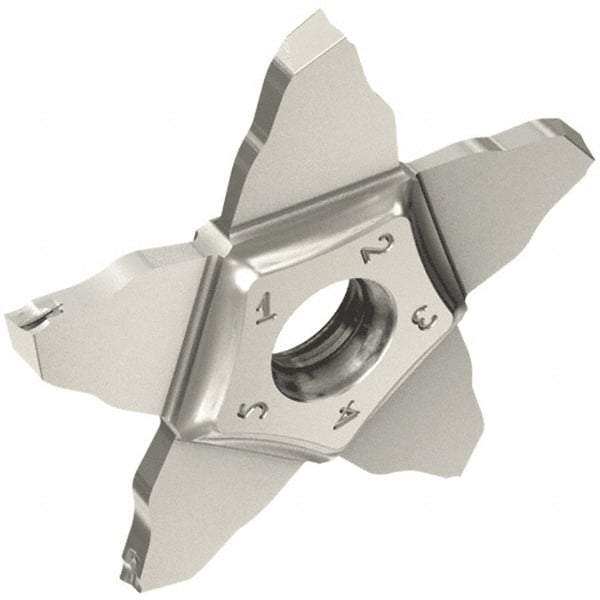

Iscar - 34L150PENTA J Grade IC908, 1.5mm Cutting Width Carbide Grooving Insert - Left Hand, 0.08mm Corner Radius, TiAlN Finish
Item #: 30731707
Brand: Iscar
Model #: 6004771
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 34L150 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Lead Angle | 6 |
| Relief Angle | 6 |
| Chipbreaker | J |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0030 |
| Coating Process | PVD |
| Series | PentaCut |
| Overall Width (mm) | 4.29 |
| Overall Width (Decimal Inch) | 0.1690 |
