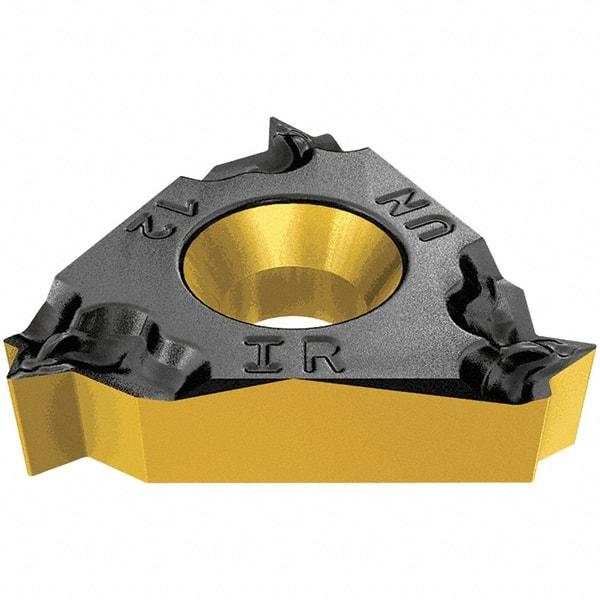

Iscar - 11IR Internal Right Hand 18 UN Laydown Threading Insert - Grade IC250, TiCN/TiN Coated Carbide, 6.35mm Inscribed Circle
Item #: 30731491
Brand: Iscar
Model #: 5998326
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 11IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Manufacturer's Grade | IC250 |
| Threads Per Inch | 18 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1260 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0030 |
| Number of Teeth Per Side | 1 |
