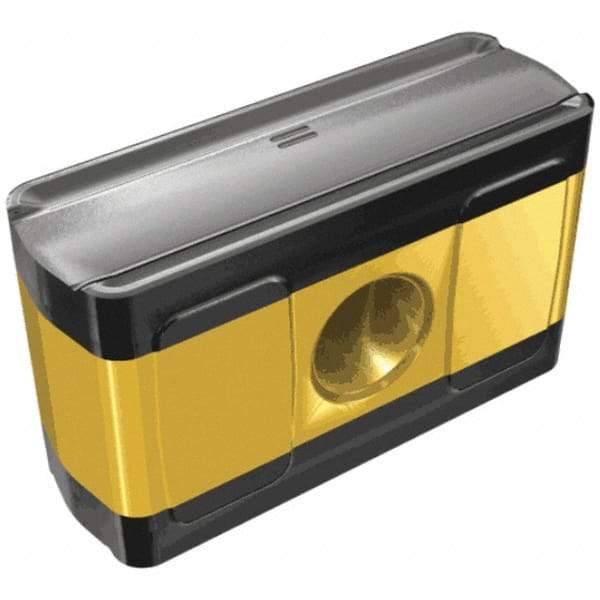

Iscar - LOMX402224 H6P Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Rectangle, 1.575 Thick, 3/32" Corner Radius
Item #: 30729727
Brand: Iscar
Model #: 5596297
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOMX |
| Insert Size | 402224 |
| Material | Carbide |
| Thickness (Decimal Inch) | 1.5750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | H6P |
| Insert Length (Decimal Inch) | 1.5750 |
| ISO Number | LOMX 402224-H6P |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Series | Isoturn |
| Insert Holding Method | Pin |
| FullRadius | No |
| Shape | Rectangle |
